Product ID:1024247
nweight:412.00g
Shelf time:2018-12-20 11:07:19
Description:PAPAGO vehicle traveling data recorder full 1080 p hd wide dynamic image processing technology
Features:

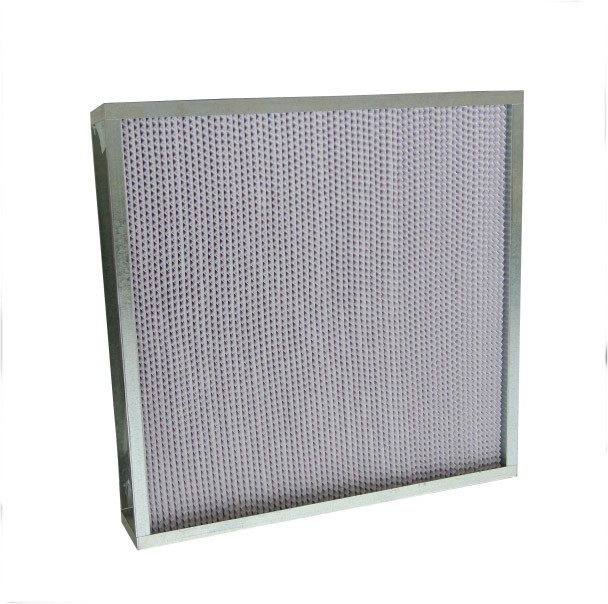

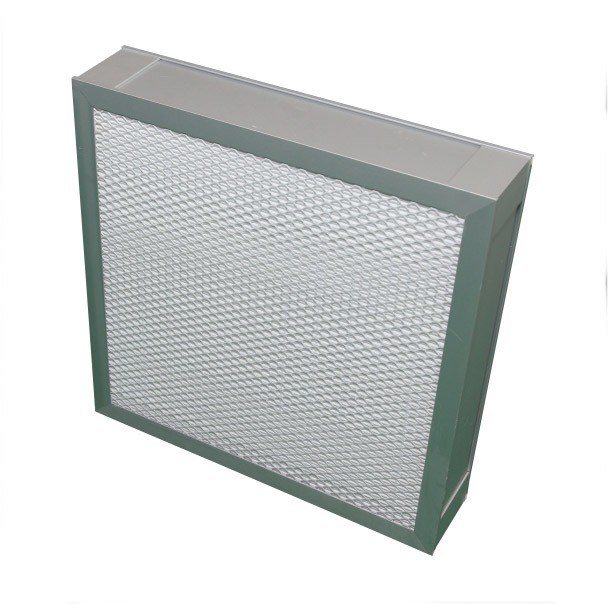

1. High-humidity-resistant separator High-efficiency filter is mainly used to filter airborne particles above 0.3um, and is used as the end filtration of various filtration systems.
2. The filter material is made of high-humidity and ultra-fine glass fiber filter paper, separated by aluminum foil board. Corrugated paper separators or aluminum partitions maintain an equidistant spacing between each pleat, allowing airflow to pass easily, ensuring efficient use of the filter and increased strength.
3. The filter is sealed around the filter with a special sealant to ensure the integrity of the entire filter.
4. It has the characteristics of high efficiency, low resistance, large dust holding capacity and high humidity resistance.
Applicable places:
It can be used for a long time in 100% RH environment. It is suitable for high temperature and humidity environments such as normal temperature and normal pressure, especially for infusion production in the pharmaceutical industry.
Technical Parameter
Model | Dimensions W*D*H(mm) | Rated air volume(m3/h) | Allow moisture content | Initial resistance(Pa) | Filtration efficiency(%) | Dust holding capacity(g) |
GKA-3S-C | 484*484*70 | 900 | ≤100 | ≤245 | Class A: ≥99.995 Class B: ≥99.98 | 226 |
GKA-5S-C | 726*484*70 | 1350 | 339 | |||
GKA-8S-C | 968*484*70 | 1800 | 452 | |||
GKA-12S-C | 610*610*70 | 1300 | 360 | |||
GKA-15S-C | 915*610*70 | 1900 | 540 |
